This article explains how Active Directory (AD) data collected by Network Glue can help create new IT Glue Contacts, or enrich existing contacts by automatically matching them to AD information. This allows you to easily automate and manage all of your AD user documentation directly within IT Glue.
Field display logic
|AD Data Field
|| IT Glue Field
To automatically push contacts created from AD data to your PSA, select an Email Type in the PSA Sync Settings page. Refer to the instructions in the next section of this KB.
Otherwise, all contacts will be created with "AD Email" type.
To automatically push contacts created from AD data to your PSA, select a Phone Type in the PSA Sync Settings page. Refer to the instructions in the next section of this KB.
Otherwise all contacts will be created with "AD Phone" type.
||Existing or newly-created contacts will be enriched with these additional fields.
|Last Password Reset
Contacts will be automatically matched using the Email address field. If the email address is not found, then the auto-match will use the First name and Last name fields.
Configuring two-way sync settings for contacts created from AD data
To automatically push newly-created contacts from on-premise or hybrid AD data, you will need to configure the two-way sync settings and contact attributes on your PSA Sync Settings page. These configurations ensure that newly-created contacts will have the correct email and phone type to be eligible for two-way sync. If they are not configured, the email and phone type fields will simply apply “AD Email” and “AD Phone” attributes instead which may not be eligible for the two-way sync which automatically pushes data.

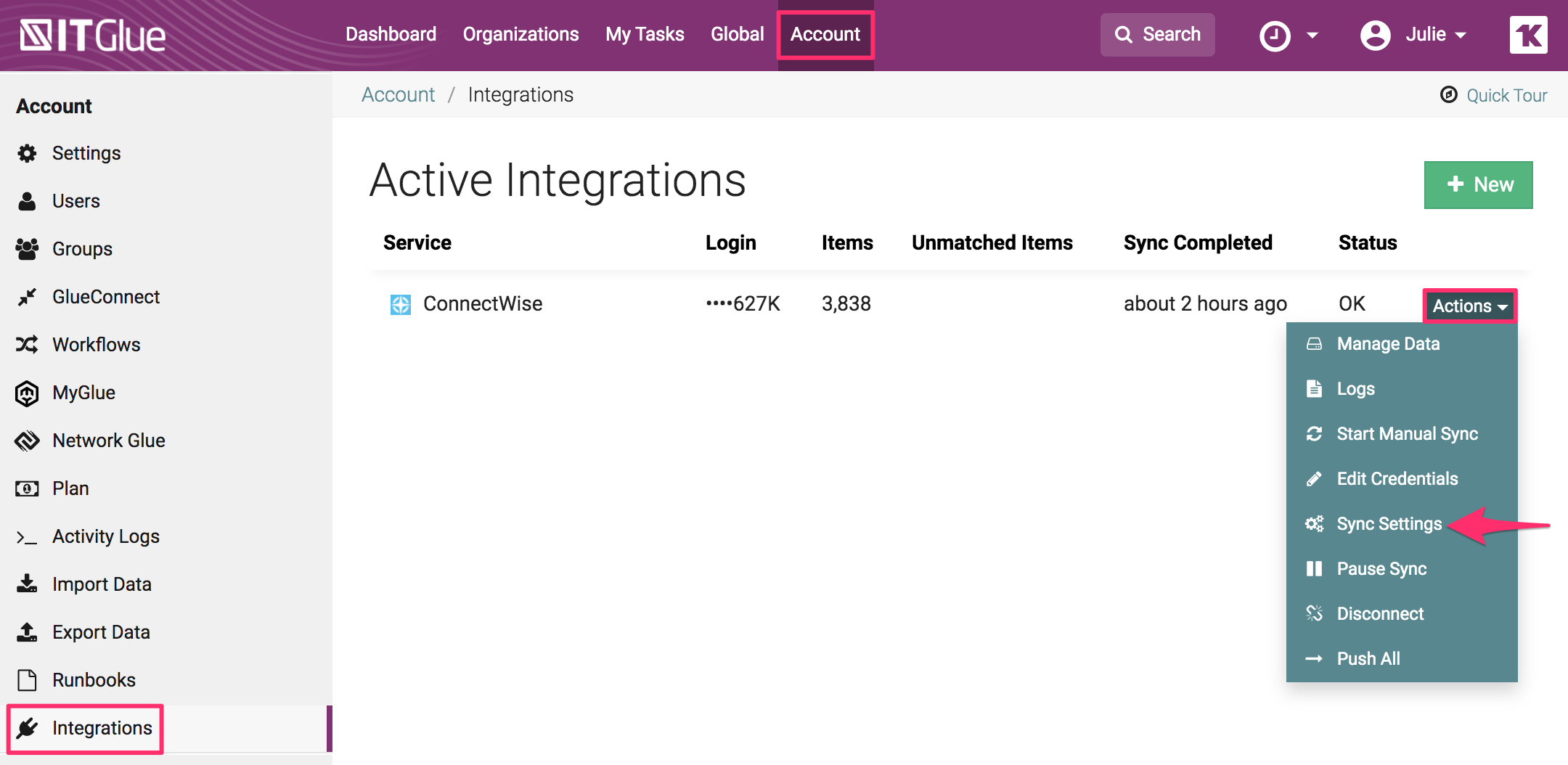

- In IT Glue, navigate to Account > Integrations > [Your PSA]. Click the Actions drop-down menu and select Sync Settings.

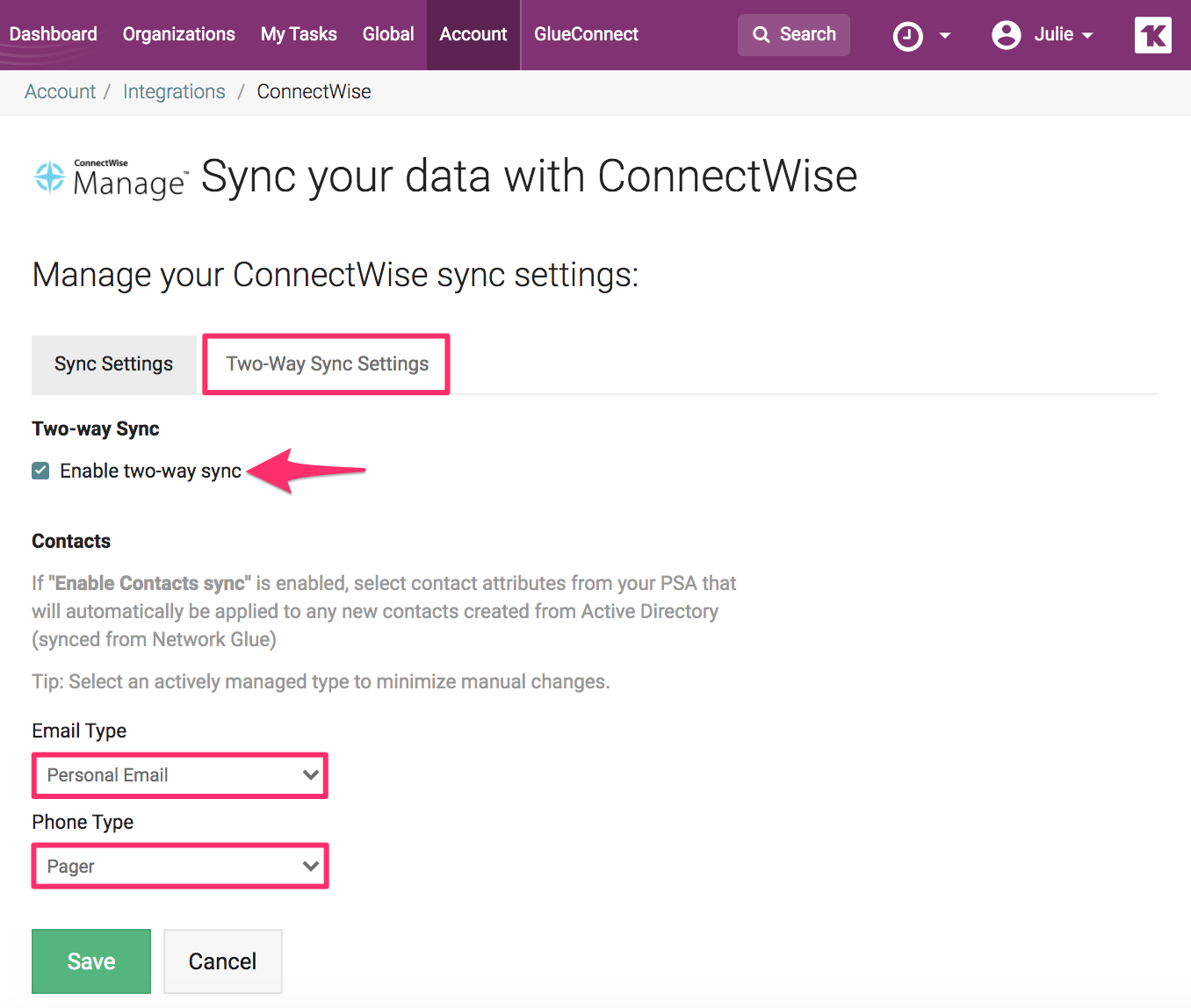

- Click the Two-Way Sync Settings tab, select the Enable two-way sync checkbox, and select the Email Type and Phone Type from their respective drop-down menus.
- Click Save.
After you turn on two-way sync, any updates that are made to mapped fields will automatically push to your PSA.
Note 1a: If you had existing Organizations, Configurations, Contacts, or Locations populated in your PSA that also exist in IT Glue, you must edit and save each asset individually to trigger the two-way sync. Enabling the two-way sync alone will not automatically push these assets.
Note 1b: If you are switching PSAs or adopting one for the first time, you can complete a one-time push to have all your IT Glue data synced at once. As IT Glue is your single source of truth, this push allows you to quickly sync all your well-documented assets in one go rather than having to manually edit, save, and push each one before completing a sync. Refer to our Pushing all syncable assets to PSA KB article for more details.
Collecting Active Directory data
All AD users are collected via AD credentials from on-premise or hybrid AD environments, so if the same credentials are used on multiple collectors, Network Glue will add this data to every Contact Matching page per collector. However, since the data is the same, every matching action that is performed on one Contact Matching page will be reflected on all other Contact Matching pages where the same data appears.
This means that if you have installed multiple collectors per organization to identify multiple subnets, your AD users will not be duplicated even if the AD credentials used are the same. AD users are collected by Network Glue installed per subnet per organization. AD data will only enrich existing IT Glue Contacts if you have provided your AD credentials. If you have not done so, the Contact Matching page will remain empty and display a “No Active Directory users were found as AD credentials were not specified” message.
Contact Matching page

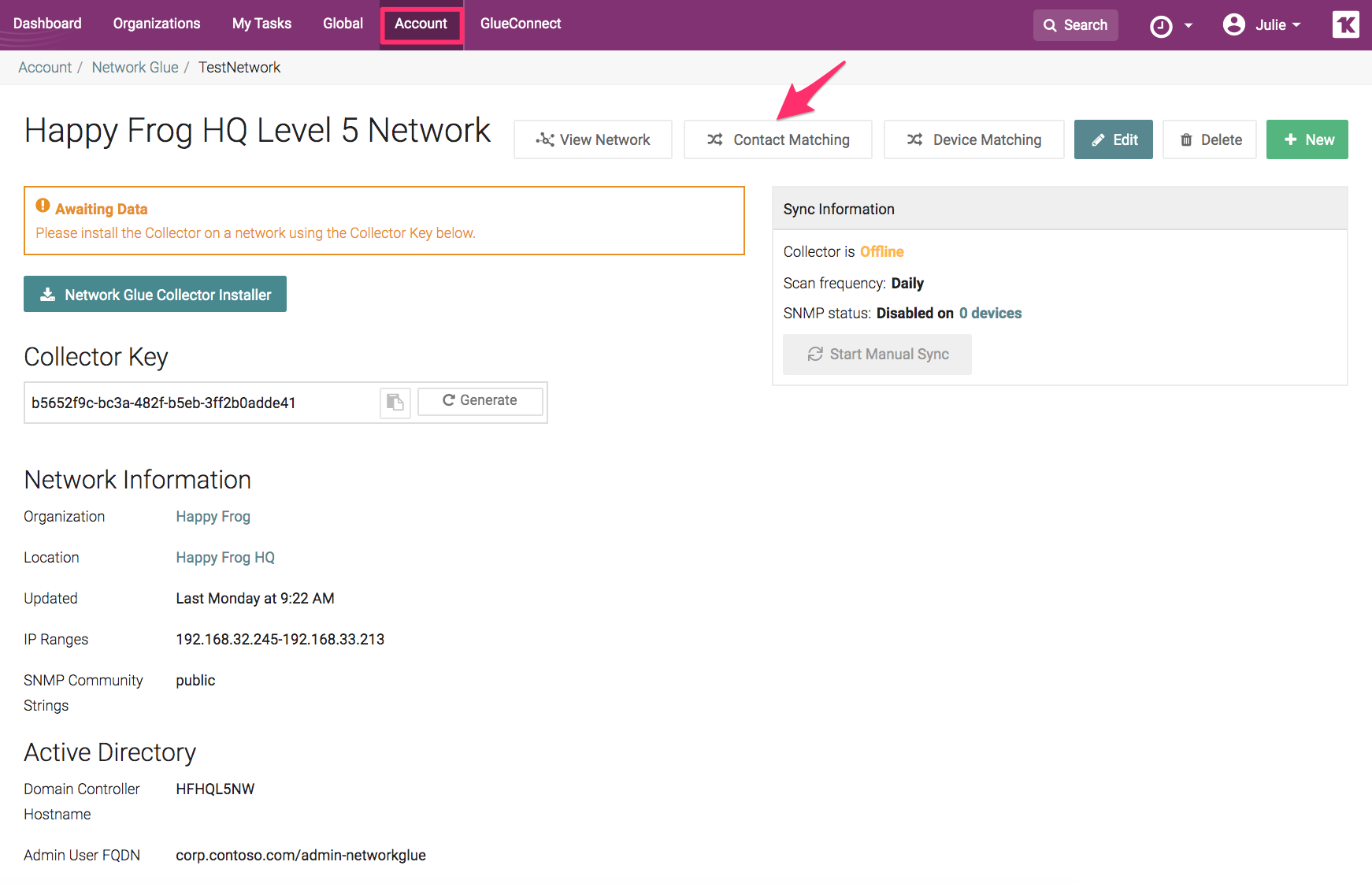

- After the Network Glue Collector has completed the scan, navigate to the Contact Matching page (Account > Network Glue > Contact Matching). This table will display the AD user’s name, email, and status.
- If you have not yet provided your AD credentials, then this page will be empty. Add the credentials to populate this page.
- On this page, you can view, filter, and search a list of Unmatched, Matched, and Ignored contacts by clicking each of the three categories.
Contact show page
If a contact is created from Network Glue data and matches your PSA’s sync requirements, then a PSA badge icon will appear on the Contact show page.

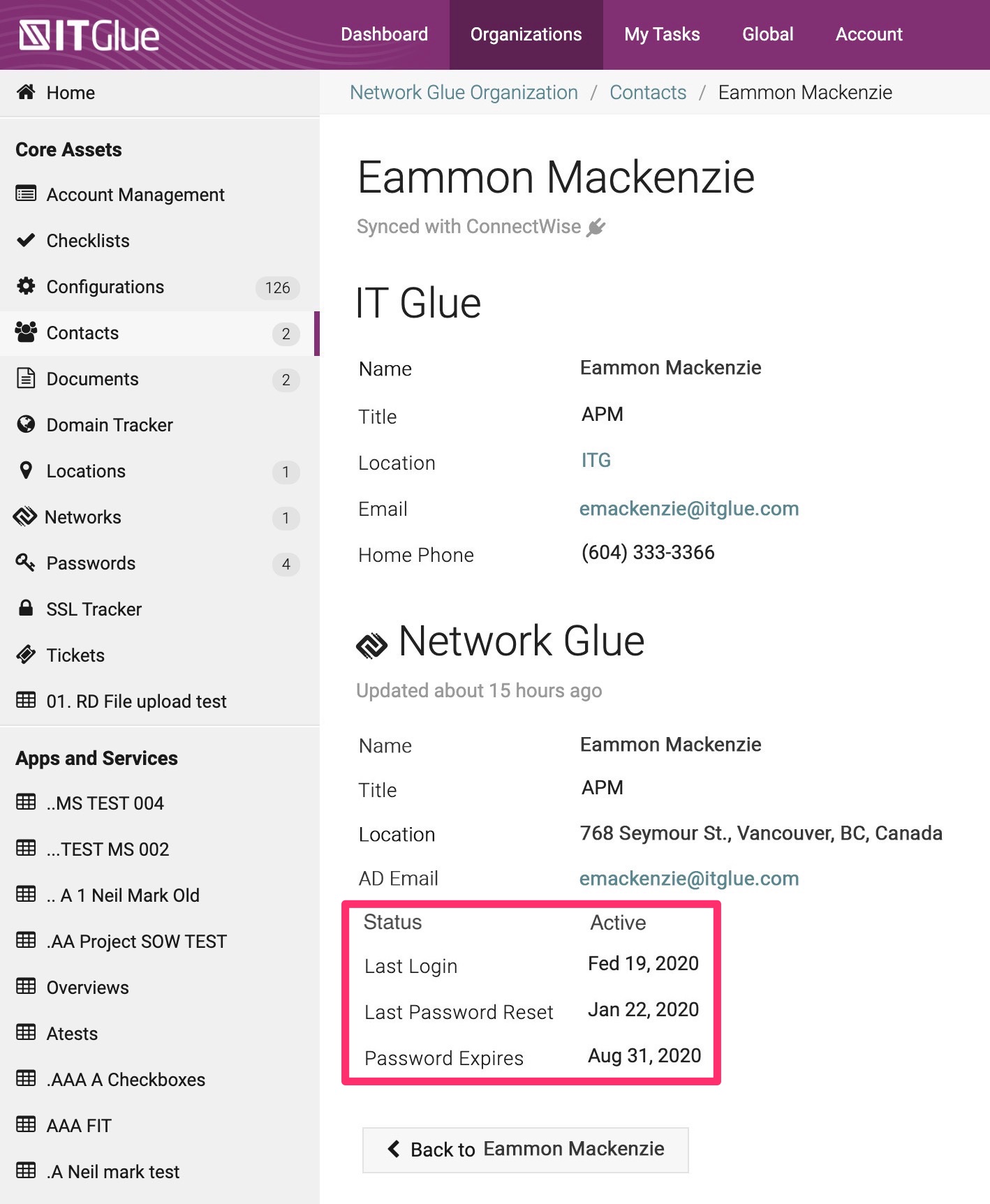

Four new overlay fields will be displayed: AD Status, Last Logon, Password Expires, and Last Password Reset.
