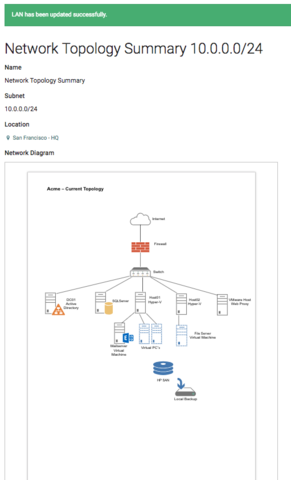

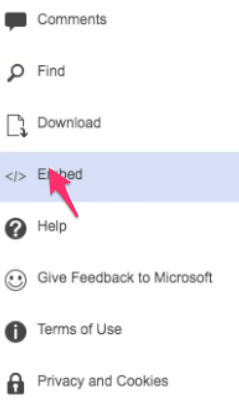

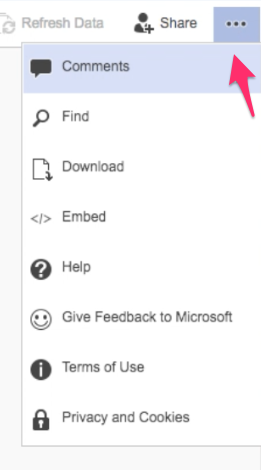

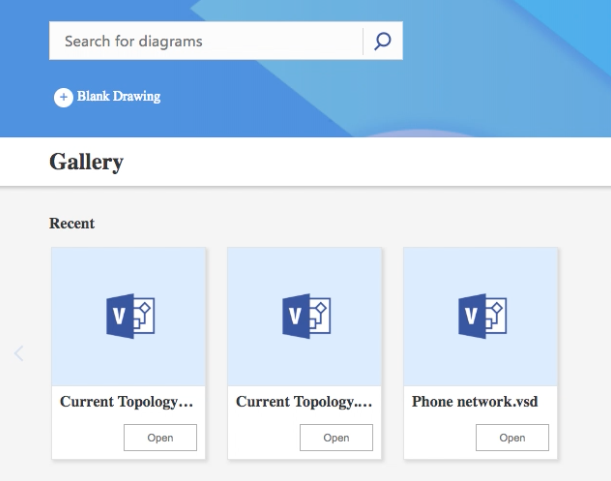

<main> <article class="userContent"> <p>You can easily embed diagrams created with Visio Online into IT Glue documentation. We'll refer to network diagrams but you can use any kind of diagram that Visio supports.</p> <h3 data-id="copy-embed-code-from-visio-online">Copy embed code from Visio Online</h3> <ol><li>Log in to your Visio Online account and select the network diagram you want to embed. <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/7IF5QTRGT4HO/screen-shot-2018-07-09-at-12-56-36-pm.png" alt="Screen_Shot_2018-07-09_at_12.56.36_PM.png" width="348" height="274" class="embedImage-img importedEmbed-img"></img></p> <img src="https://us.v-cdn.net/6032361/uploads/migrated/TI4ERVELHDS5/network-topology-diagram.png" alt="network_topology_diagram.png" class="embedImage-img importedEmbed-img"></img></li> <li>In the top-right corner of the document frame, click the ellipsis. <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/EQIL7E7K7NNC/embed-visio-online-documents-it-glue-knowledge-base.png" alt="Embed_Visio_Online_Documents___IT_Glue_Knowledge_Base.png" class="embedImage-img importedEmbed-img"></img></p> </li> <li>From the dropdown dialog, choose <strong>Embed</strong>. <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/TOO4AEO0OCR4/embed-visio-online-documents-it-glue-knowledge-base-2.png" alt="Embed_Visio_Online_Documents___IT_Glue_Knowledge_Base-2.png" class="embedImage-img importedEmbed-img"></img></p> </li> <li>Enter the dimensions of the document you want to embed. Copy the <strong>Embed Code</strong>. <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/8AI2CM0N8VNH/embed-visio-online-documents-it-glue-knowledge-base-3.png" alt="Embed_Visio_Online_Documents___IT_Glue_Knowledge_Base-3.png" class="embedImage-img importedEmbed-img"></img></p> </li> </ol><h3 data-id="pasting-the-embed-code-in-it-glue">Pasting the embed code in IT Glue</h3> <ol><li>Log in to your IT Glue account and navigate to <strong>Organizations > LAN</strong>. Click on the <strong>+ New</strong> button. <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/613CPVK4O1E2/lans-it-glue.png" alt="LANs___IT_Glue.png" class="embedImage-img importedEmbed-img"></img></p> </li> <li>Under <strong>Network Diagram</strong>, click on the <strong>Embed Media</strong> icon in the toolbar. Paste in the embed code from Visio and click the checkmark to confirm your entry. <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/48OBBVHH73BJ/create-lan-it-glue.png" alt="Create_LAN___IT_Glue.png" class="embedImage-img importedEmbed-img"></img></p> <p><img src="https://us.v-cdn.net/6032361/uploads/migrated/K6DV5SG4Y18K/screen-shot-2018-07-09-at-1-05-01-pm.png" alt="Screen_Shot_2018-07-09_at_1.05.01_PM.png" width="376" height="410" class="embedImage-img importedEmbed-img"></img></p> </li> <li>Click on the <strong>Save</strong> button at the bottom of the screen.</li> </ol><p>The LAN for your network diagram has been created. </p> <p><img src="https://us.v-cdn.net/6032361/uploads/migrated/TI4ERVELHDS5/network-topology-diagram.png" alt="network_topology_diagram.png" class="embedImage-img importedEmbed-img"></img></p> <div> <strong>Note:</strong> When you select the diagram from your LANS, you will need to sign in to your Office 365 account to be able to view it. <p><img src="https://us.v-cdn.net/6032361/uploads/migrated/RDL8GY2MYBX3/network-topology-summary.png" alt="network_topology_summary.png" class="embedImage-img importedEmbed-img"></img></p> </div> </article> </main>
