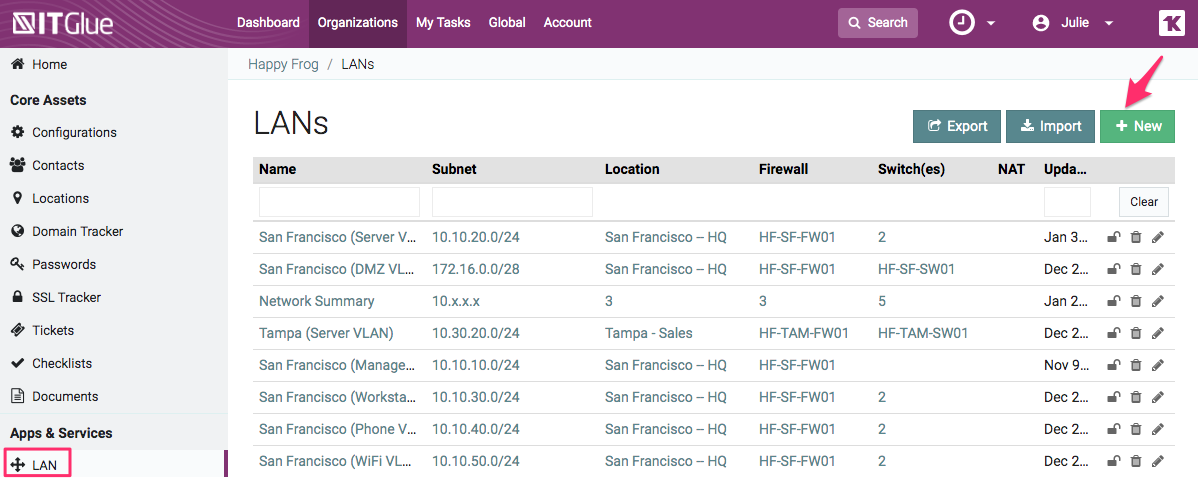

<main> <article class="userContent"> <p>Introduction</p> <p>After your network devices are loaded into IT Glue, the Configurations list view gives you a complete view of just the devices, and this can be filtered and sorted in multiple ways.</p> <p>To document subnets, use the LAN flexible asset. With this flexible asset, you're primarily adding links to devices, so that you can later fetch one from the other and vice-versa. It was designed simply and is a great example of an asset that can be expanded over time.</p> <p>Note that if traffic on the network is separated using VLANs, the LAN flexible asset is where you should document the VLAN configurations, adding links to the relevant <a href="https://kaseya.vanillacommunities.com/kb/articles/aliases/itglue/hc/en-us/articles/360004939258-Switches" rel="noopener nofollow">switches</a>. Alternatively, if the VLAN is completely separate despite being connected to the same router (e.g. a guest wireless network), you could consider creating the VLAN as a sub-organization instead. This lets you make sure the VLAN configuration has more visibility whenever there is an issue to troubleshoot. For more information on using sub-organizations, see <a href="https://kaseya.vanillacommunities.com/kb/articles/aliases/itglue/hc/en-us/articles/360004934517-When-to-use-sub-organizations-" rel="noopener nofollow">Working with sub-organizations</a>.</p> <p>Preparation</p> <ul><li>Load the network attached devices in the client environment as configurations.</li> <li>Visit <strong>Account > Flexible Asset Types > LAN </strong>to ensure the available fields and drop-down options are in line with the information you want to capture. Suggested additions include: key internal DNS entries, switch routing, DHCP options, and managed UPS systems.</li> </ul><p>Instructions</p> <p>Create entries for each subnet using the instructions below.</p> <ol><li>Navigate to the organization you are onboarding.</li> <li>Click on <strong>LAN</strong> in the left sidebar and then on the <strong>+ New</strong> button in the top-right corner. <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/DVRBDSHGYKL7/lans-it-glue.png" alt="LANs___IT_Glue.png" class="embedImage-img importedEmbed-img"></img></p> </li> <li>In the <strong>Create LAN</strong> screen, complete each of the below fields: <ul><li> <strong>Name</strong> - Enter a name that your team can easily identify.</li> <li> <strong>Subnet</strong> - Enter the subnet mask. This will be displayed in the title of the document after the name.</li> <li> <strong>Location</strong> - Search for and select the location.</li> <li> <strong>Firewall</strong> - Search for and select the configuration item/security appliance.</li> <li> <strong>Switches</strong> - Search for and select the relevant configuration items.</li> <li> <strong>Servers</strong> - Search for and select the relevant configuration items (virtual and physical).</li> <li> <strong>Network Diagram</strong> - Embed a network diagram. Y ou can embed a variety of media in flexible assets. For instructions on how to embed a diagram, see <a href="https://kaseya.vanillacommunities.com/kb/articles/aliases/itglue/hc/en-us/articles/360004939298-Embed-Lucidchart-Diagrams" rel="noopener nofollow">Using Lucidchart to embed diagrams</a> and <a href="https://kaseya.vanillacommunities.com/kb/articles/aliases/itglue/hc/en-us/articles/360004939038-Support-for-embedded-content-in-flexible-assets" rel="noopener nofollow">Supporting embedded content in flexible assets</a>.</li> <li> <strong>Floor Plans/Photos</strong> - Click the <strong>Choose Files</strong> button to upload server room photos.</li> <li> <strong>DHCP Scope </strong>and <strong>DHCP Server </strong>- Add DHCP information.</li> </ul></li> <li>Click <strong>Save</strong>.</li> </ol> </article> </main>
