Integrating with ConnectWise Manage - Connect IT Community | Kaseya

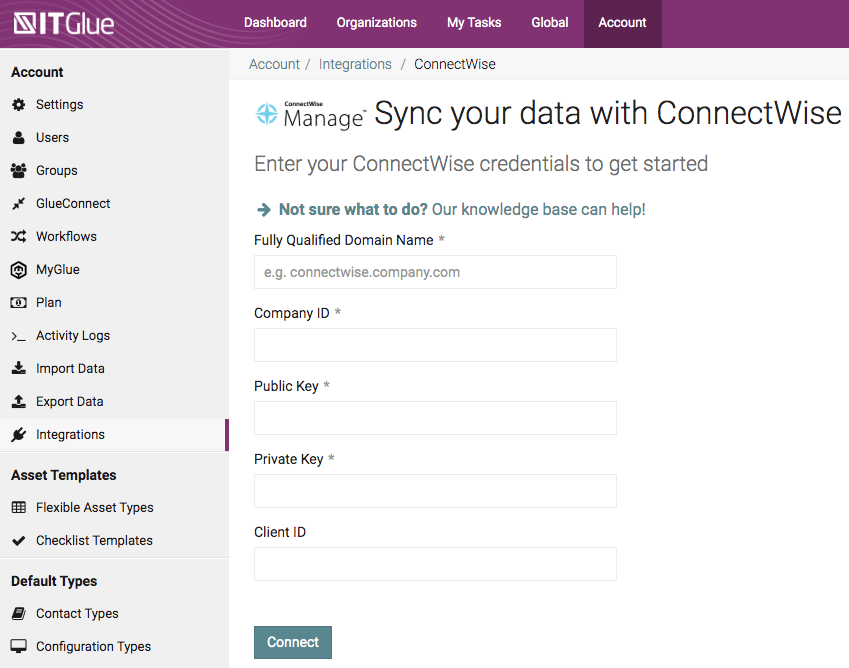

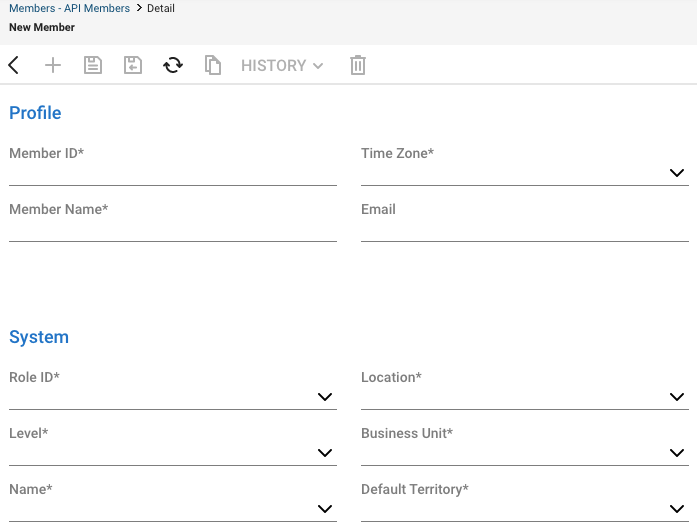

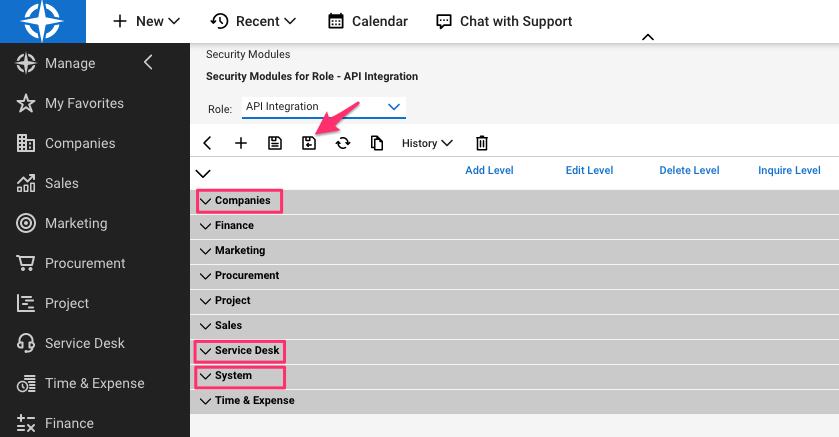

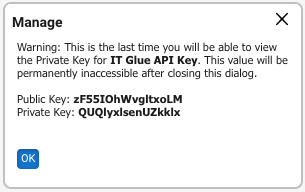

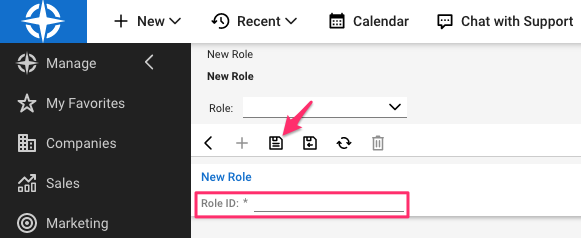

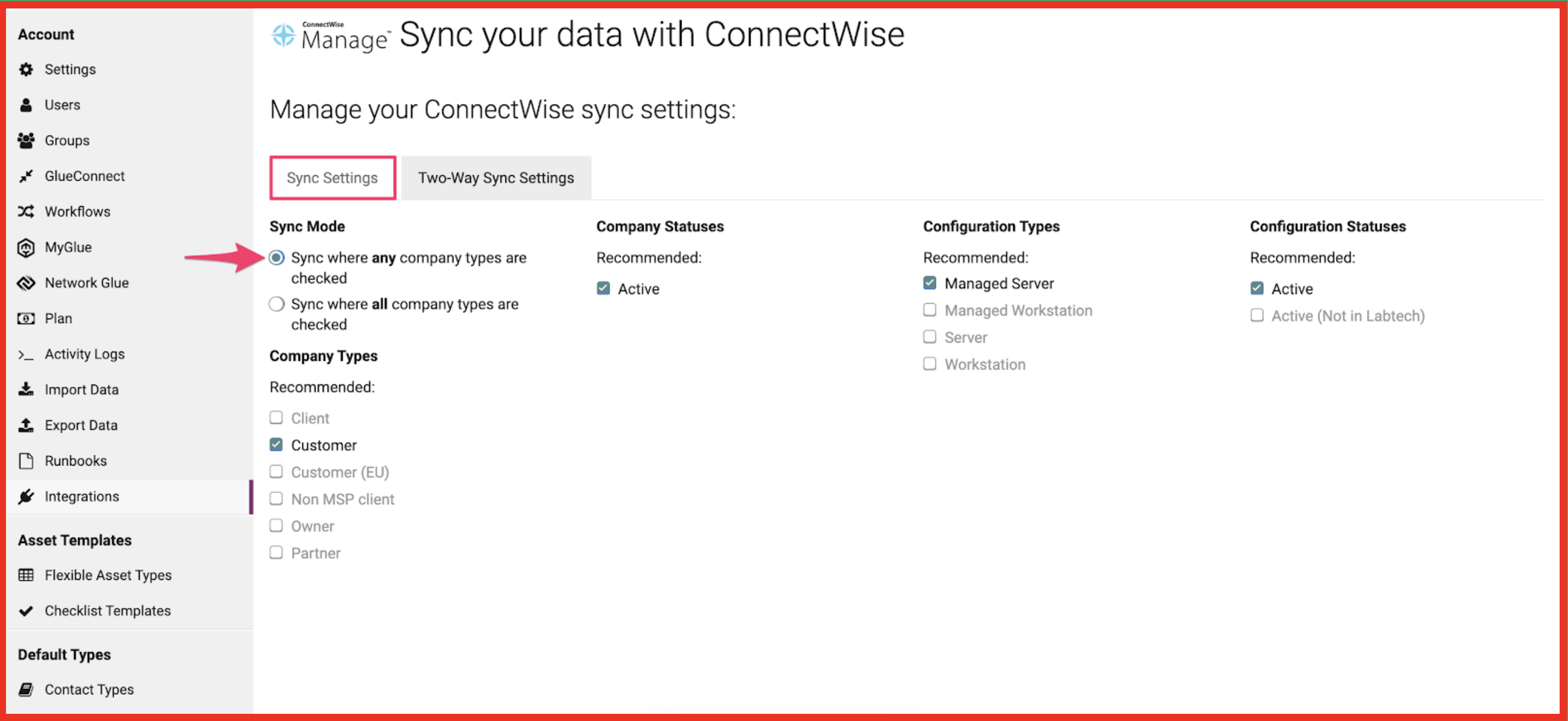

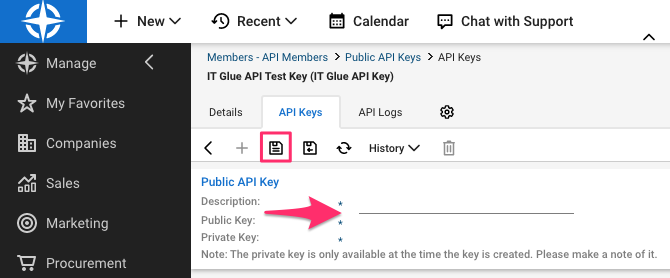

<main> <article class="userContent"> <p>Introduction </p> <p>Use this article as a guide when you integrate with ConnectWise Manage. At any time, you can come back to the <strong>Active Integrations</strong> screen (<strong>Account > Integrations</strong>) to make changes to the integration.</p> <p>The field mappings are set up automatically when you follow the instructions below. For more information, take a look at <a href="/home/leaving?allowTrusted=1&target=https%3A%2F%2Fkaseya.vanillacommunities.com%2Fkb%2Farticles%2Faliases%2Fitglue%2Fhc%2Fen-us%2Farticles%2F360004936737-ConnectWise-Manage-field-mappings" rel="noopener nofollow">ConnectWise Manage field mappings</a>.</p> <p>Prerequisites </p> <ul><li>An SSL connection with a valid certificate (not self-signed) from a trusted authority is required.</li> <li>You must have Manager or Administrator access to IT Glue.</li> <li>You must have Administrator access to ConnectWise Manage to obtain the public and private keys.</li> <li>You will need your Domain Name (FQDN)/cloud URL and your company database ID (e.g. mycompany).</li> <li>You will need to have Role IDs, Levels, Names, Locations, Business Units, and Default Territories setup in ConnectWise Manage.</li> </ul><p>Instructions</p> <div> <p>ConnectWise supports two preceding versions from the most current one. Partners that are on older versions may experience issues. To ensure full, expected functionality with your ConnectWise Manage integration and continue receiving support, refer to their documentation on how to update your version of the platform.</p> </div> <ol><li>In IT Glue, navigate to <strong>Account > Integrations</strong> and create a new integration using the <strong>ConnectWise</strong> option. <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/285K45YNCV05/choose-a-platform-to-sync-your-data-with-it-glue-1.png" alt="Choose_a_platform_to_sync_your_data_with___IT_Glue-1.png" class="embedImage-img importedEmbed-img"></img></p> </li> <li>Complete the fields in the integration setup screen. <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/1NGAZ04O2BH9/connectwise-it-glue-1.png" alt="ConnectWise___IT_Glue-1.png" class="embedImage-img importedEmbed-img"></img></p> <ol type="a"><li> <p><strong>Client ID: </strong>A ConnectWise-based unique identifier value. You can generate your own Client ID from ConnectWise directly <a href="/home/leaving?allowTrusted=1&target=https%3A%2F%2Fdeveloper.connectwise.com%2FClientID%2FPartner_Client_IDs" rel="noopener nofollow">here </a>once you have logged in to your ConnectWise account.</p> </li> <li> <strong>Public Key / Private Key:</strong> REST API credentials which include a public key and a private API key. Follow Step 3 below to generate these credentials. </li> </ol></li> <li>Log in to the ConnectWise Manage app and navigate to <strong>System > Security Roles</strong>. You will create a new security role to be used for obtaining the REST API credentials by following the steps below: <ol><li> <ol type="a"><li>Click the <strong>plus icon (+)</strong> at the top of the screen. <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/3CWJ0CQWN52P/manage-security-roles-1.png" alt="Manage__Security_Roles-1.png" class="embedImage-img importedEmbed-img"></img></p> </li> <li>Enter a name for your new security role (e.g. <em>IT Glue API integration)</em> and then click the <strong>Save</strong> icon. <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/DSA0QQK2V9G3/manage-security-roles-2-1.png" alt="Manage__Security_Roles-2-1.png" class="embedImage-img importedEmbed-img"></img></p> </li> <li>You will be led to the <strong>Security Modules</strong> screen. Click the down arrows beside the <strong>Companies</strong>,<strong> Service Desk</strong>, and<strong> System </strong>headings to expand each section.</li> <li>In all three sections, replicate the permission parameters <em>exactly</em> as shown in the tables below. To do so, click the down arrows to change the permissions from <strong>"None"</strong> (default) to <strong>"All"</strong>. The tables below only show the rows that will require editing.<br><br><table style="width: 642px;"><tbody><tr style="background-color: DCDCDC;"><td><strong>Companies</strong></td> <td><strong>Add Level </strong></td> <td><strong>Edit Level </strong></td> <td><strong>Delete Level </strong></td> <td><strong>Inquire Level </strong></td> </tr><tr><td style="background-color: FFFFFF;"><strong>Company Maintenance</strong></td> <td style="background-color: FFFFFF;"><strong>All</strong></td> <td style="background-color: FFFFFF;"><strong>All</strong></td> <td style="background-color: FFFFFF;">None</td> <td style="background-color: FFFFFF;"><strong>All </strong></td> </tr><tr><td style="background-color: FFFFFF;"><strong>Configuration - Display Passwords</strong></td> <td style="background-color: FFFFFF;">None</td> <td style="background-color: FFFFFF;">None</td> <td style="background-color: FFFFFF;">None</td> <td style="background-color: FFFFFF;"><strong>All</strong></td> </tr><tr><td style="background-color: FFFFFF;"><strong>Configurations</strong></td> <td style="background-color: FFFFFF;"><strong>All</strong></td> <td style="background-color: FFFFFF;"><strong>All</strong></td> <td style="background-color: FFFFFF;">None</td> <td style="background-color: FFFFFF;"><strong>All</strong></td> </tr><tr><td style="background-color: FFFFFF;"><strong>Contacts</strong></td> <td style="background-color: FFFFFF;"><strong>All</strong></td> <td style="background-color: FFFFFF;"><strong>All</strong></td> <td style="background-color: FFFFFF;">None</td> <td style="background-color: FFFFFF;"><strong>All</strong></td> </tr></tbody></table><table style="width: 642px;"><tbody><tr style="background-color: DCDCDC;"><td><strong>Service Desk</strong></td> <td><strong>Add Level </strong></td> <td><strong>Edit Level </strong></td> <td><strong>Delete Level </strong></td> <td><strong>Inquire Level </strong></td> </tr><tr><td style="background-color: FFFFFF;"><strong>Service Tickets</strong></td> <td style="background-color: FFFFFF;">None</td> <td style="background-color: FFFFFF;">None</td> <td style="background-color: FFFFFF;">None</td> <td style="background-color: FFFFFF;"><strong>All</strong></td> </tr></tbody></table><table style="width: 642px;"><tbody><tr style="background-color: DCDCDC;"><td><strong>System</strong></td> <td><strong>Add Level </strong></td> <td><strong>Edit Level </strong></td> <td><strong>Delete Level </strong></td> <td><strong>Inquire Level </strong></td> </tr><tr><td style="background-color: FFFFFF;"><strong>API Reports</strong></td> <td style="background-color: FFFFFF;"><strong>All</strong></td> <td style="background-color: FFFFFF;"><strong>All</strong></td> <td style="background-color: FFFFFF;">None</td> <td style="background-color: FFFFFF;"><strong>All</strong></td> </tr><tr><td style="background-color: FFFFFF;"><strong>Member Maintenance</strong></td> <td style="background-color: FFFFFF;">None</td> <td style="background-color: FFFFFF;">None</td> <td style="background-color: FFFFFF;">None</td> <td style="background-color: FFFFFF;"><strong>All</strong></td> </tr><tr><td><strong>Table Setup</strong></td> <td>None</td> <td>None</td> <td>None</td> <td><strong>All</strong></td> </tr></tbody></table></li> <li>After editing the permissions for each section, click the <strong>Save and Close</strong> icon. <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/B0HEMB0D60RE/manage-security-roles-3-1.png" alt="Manage__Security_Roles-3-1.png" class="embedImage-img importedEmbed-img"></img></p> </li> </ol></li> </ol></li> <li>Navigate to <strong>System > Members > API Members</strong> tab. Then, click the <strong>plus icon (+) > New Member</strong>. <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/9VPALLZLCZY3/manage-members-1.png" alt="Manage__Members-1.png" class="embedImage-img importedEmbed-img"></img></p> </li> <li>In the next <strong>Details</strong> screen, complete the following fields in each section: <ol type="a"><li> <strong>Profile</strong> section: <ol type="i"><li> <strong>Member ID</strong> - Enter the username of the member (e.g. <em>IT Glue</em>). The maximum number of characters allowed is 15.</li> <li> <strong>Time Zone</strong> - Select a time zone for the internal company. To set up time zones, refer to ConnectWise's documentation <a href="/home/leaving?allowTrusted=1&target=https%3A%2F%2Fdocs.connectwise.com%2FConnectWise_Documentation%2F090%2F040%2F005" rel="noopener nofollow">here</a>. </li> <li> <strong>Member Name</strong> - Enter the member's first and last name.</li> </ol></li> <li> <strong>System</strong> section: <ol type="i"><li> <strong>Role ID</strong> - The security Role ID controls the level of access to the ConnectWise Manage application by limiting access to functionality. Select the new security role that you created in <em><strong>Step 1</strong></em><strong> (e.g. <em>IT Glue API Integration</em>)</strong><em>.</em> </li> <li> <strong>Location*</strong> - Select the default location for the company. Any new record created by the member will default to the location set here.</li> <li> <strong>Level</strong> - Select the level of access that the member will have in the application. The member will be able to search for companies at the specified level and the ones below it. The restriction here applies to tickets for companies outside the location, as well as members. <div> <p><strong>Important.</strong> We strongly recommend that you select the <em>highest</em> level of access (e.g. Level 1) to ensure that all companies will sync to IT Glue without issue. Selecting a lower level of access may result in some companies not syncing to IT Glue.</p> </div> </li> <li> <strong>Business Unit*</strong> - Select the member's business unit.</li> <li> <strong>Name</strong> - This field corresponds to the <strong>Level</strong> field above. After selecting a Level, select a specific name associated with the structure level. To setup Name, please refer to ConnectWise's documentation <a href="/home/leaving?allowTrusted=1&target=https%3A%2F%2Fdocs.connectwise.com%2FConnectWise_Documentation%2F090%2F023%2F030" rel="noopener nofollow">here</a>.</li> <li> <strong>Default Territory*</strong> - Select the member's default territory.</li> </ol><div> <p><strong>*</strong> For more information on how to setup Locations, Business Units, and Territories, please refer to ConnectWise's documentation <a href="/home/leaving?allowTrusted=1&target=https%3A%2F%2Fdocs.connectwise.com%2FConnectWise_Documentation%2F090%2F023%2F040" rel="noopener nofollow">here</a>.</p> </div> <p><img src="https://us.v-cdn.net/6032361/uploads/migrated/PE7GHSB4AV0S/manage-members-3-10-12-18-am-png-png-1.png" alt="Manage__Members-3_10_12_18_AM_png_png-1.png" class="embedImage-img importedEmbed-img"></img></p> </li> </ol></li> <li>In the top menu bar, click the <strong>Save</strong> icon. <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/DNIJXH9GTGLI/manage-members-4.png" alt="Manage__Members-4.png" class="embedImage-img importedEmbed-img"></img></p> </li> <li>Click the <strong>API Keys</strong> tab and then on the <strong>plus icon (+)</strong>.<br><p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/498LMS5KPCJB/manage-members-5.png" alt="Manage__Members-5.png" class="embedImage-img importedEmbed-img"></img></p> </li> <li>Enter a description of the key (e.g. <em>IT Glue</em>) and click the <strong>Save</strong> icon. <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/O4K7PGM6XZIB/manage-members-3-1.png" alt="Manage__Members-3-1.png" class="embedImage-img importedEmbed-img"></img></p> <p>Once saved, the public and private keys will be generated.</p> <div> <strong>IMPORTANT! </strong>Keep the private key in a secure location as it <strong><em>will not </em></strong>be visible again after closing the window. <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/JIKLP55X34LD/setting-up-rest-api-credentials-for-the-connectwise-manage-integration-1.png" alt="Setting_up_REST_API_credentials_for_the_ConnectWise_Manage_integration-1.png" class="embedImage-img importedEmbed-img"></img></p> </div> </li> <li>Then, click <strong>Connect</strong>. You will be taken directly to the <strong>Sync Settings</strong> page. <div> <strong>Note:</strong> If your REST API credentials are incorrect, a red notification banner will appear at the top of the screen. Ensure that your credentials have been entered correctly and click <strong>Connect</strong> again. <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/93G8FE0HHG0R/slack-wendy-har-it-glue-1.png" alt="Slack___Wendy_Har___IT_Glue-1.png" width="474" height="496" class="embedImage-img importedEmbed-img"></img></p> </div> </li> <li>In the <strong>Sync Settings</strong> tab, tell us how much of your data to sync. By default, recommended options are listed first. As a best practice, we recommend you only select the company types, configuration types and statuses, and ticket boards you actively manage.<br><div> <strong>IMPORTANT!</strong> If your ConnectWise companies have multiple types, all types must be checked in IT Glue for these companies to sync.</div> <em>Optional:</em> In the <strong>Sync Mode</strong> section, you have the option to “Sync where <strong>any</strong> company types are checked”. Note that the default option is set to “Sync where <strong>all</strong> company types are checked”. </li> </ol><p><img src="https://us.v-cdn.net/6032361/uploads/migrated/VYCE0OLYQKAG/screen-shot-2021-04-07-at-10-46-11-am.png" alt="Screen_Shot_2021-04-07_at_10.46.11_AM.png" class="embedImage-img importedEmbed-img"></img></p> <ol><li>In the <strong>Two-Way Sync Settings</strong> tab, review the <strong>Enable two-way sync</strong> setting. Uncheck this function if desired. For partners with Network Glue and Active Directory enabled, configure your contact attributes so that new contacts created from Active Directory are automatically pushed to your PSA (learn more <a href="/home/leaving?allowTrusted=1&target=https%3A%2F%2Fkaseya.vanillacommunities.com%2Fkb%2Farticles%2Faliases%2Fitglue%2Fhc%2Fen-us%2Farticles%2F360010844577" rel="noopener nofollow">here</a>). <p><br><img src="https://us.v-cdn.net/6032361/uploads/migrated/WOO06FE3S2KB/connectwise-it-glue-3900970.png" alt="ConnectWise___IT_Glue-3900970.png" class="embedImage-img importedEmbed-img"></img></p> <div> <p><strong>Note 1a</strong>: If you had existing Organizations, Configurations, Contacts, or Locations populated in ConnectWise that also exist in IT Glue, you must edit and save each asset individually to trigger the <a href="/home/leaving?allowTrusted=1&target=https%3A%2F%2Fkaseya.vanillacommunities.com%2Fkb%2Farticles%2Faliases%2Fitglue%2Fhc%2Fen-us%2Farticles%2F360004934157" rel="noopener nofollow">two-way sync</a>. Enabling the two-way sync alone will not automatically push these assets.</p> <p><strong>Note 1b</strong>: If you are switching to ConnectWise or adopting it for the first time, you can complete a one-time push to have all your IT Glue data synced at once. As IT Glue is your single source of truth, this push allows you to quickly sync all your well-documented assets in one go rather than having to manually edit, save, and push each one before completing a sync. Refer to our <a href="/home/leaving?allowTrusted=1&target=https%3A%2F%2Fkaseya.vanillacommunities.com%2Fkb%2Farticles%2Faliases%2Fitglue%2Fhc%2Fen-us%2Farticles%2F360007508538-Pushing-All-Syncable-Assets-to-PSA" rel="noopener nofollow">Pushing all syncable assets to PSA</a> KB article for more details.</p> <p><strong>Note 2: </strong>With the ConnectWise Manager REST API in place, you can only create configurations in IT Glue and have them sync automatically if the chosen Configuration Type has no required "Questions" set in ConnectWise Manage.</p> </div> </li> <li>Click <strong>Save</strong>. The sync will be automatically queued.</li> <li>You can use the manual sync option to prioritize the sync to start sooner. To start a manual sync, navigate to <strong>Account > Integrations</strong>, click <strong>Actions</strong> and <strong>Start Manual Sync</strong>.</li> <li>From the <strong>Active Integrations</strong> screen, you can see the overall sync status. When the sync is complete, the status column changes from <strong>Syncing...</strong> to <strong>OK.</strong> </li> </ol><p>Note that when you initially set up the integration, you will be shown a list of all licensed user accounts in your PSA on the next screen, so that you can mass invite them to your IT Glue account. We automatically select all PSA users to be invited.</p> <p>If you don’t yet want to send invitations to everyone, be sure to individually uncheck the boxes next to anyone you plan to invite later or not at all. Next, click the <strong>Invite Users</strong> button to <a href="/home/leaving?allowTrusted=1&target=https%3A%2F%2Fkaseya.vanillacommunities.com%2Fkb%2Farticles%2Faliases%2Fitglue%2Fhc%2Fen-us%2Farticles%2F360004938478-Adding-and-removing-users" rel="noopener nofollow">invite them to join</a>. If you don’t want to invite anyone, you can also skip this step entirely by clicking the <strong>Skip</strong> link.</p> </article> </main>
