RMM Integration Setup: BMS | VSA - Connect IT Community | Kaseya

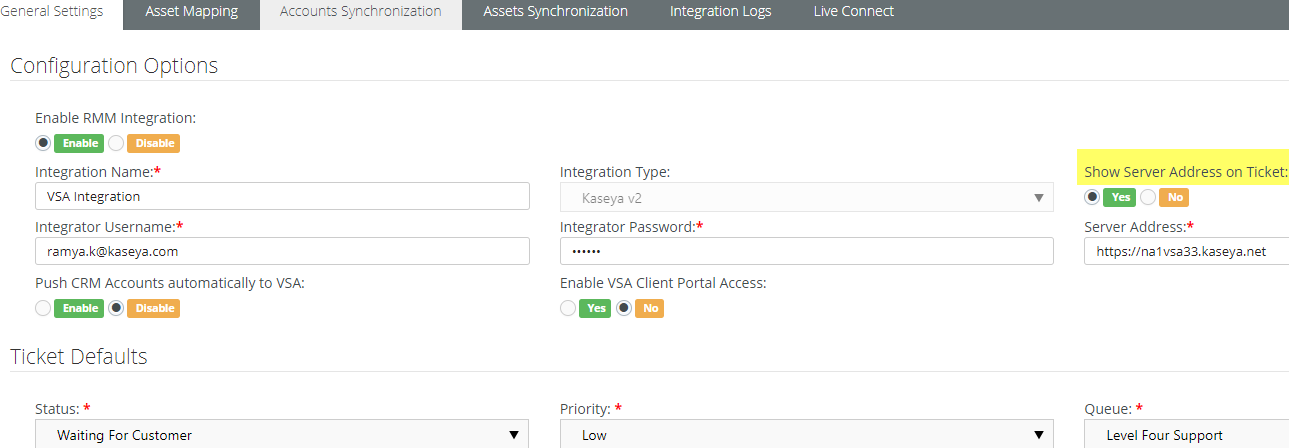

<main> <article class="userContent"> <p>Introduction</p> <p>RMM integrations with VSA and BMS allow you to sync your organizations and machines to BMS. This integration provides the ability to push tickets, create client portal users from VSA contacts, use Live Connect on synced assets, and run agent procedures via workflows in BMS. Integration prerequisites such as server details can be found <a href="/home/leaving?allowTrusted=1&target=https%3A%2F%2Fkaseya.vanillacommunities.com%2Fkb%2Farticles%2Faliases%2Fkaseya%2Fhc%2Fen-gb%2Farticles%2F360011344777%23part-one" rel="noopener nofollow">here</a>. </p> <p>Integration has 3 steps and involves configuration on both BMS and VSA:</p> <ol><li><a rel="nofollow" href="#h_01EFF9RJSJX12NY3QEBFPTS2QQ">BMS RMM Integration</a></li> <li><a rel="nofollow" href="#h_01EFF9S9JCZ963X9WMA1MMGZDH">VSA Sync Configuration</a></li> <li><a rel="nofollow" href="#h_01EFF9SQVD8Y335FB4H7MMQC65">Live Connect</a></li> </ol><p>Instructions</p> <h3 id="h_01EFF9RJSJX12NY3QEBFPTS2QQ" data-id="bms-rmm-integration">BMS RMM Integration</h3> <ol><li>Navigate to Admin > Service Desk > RMM Integration Settings.</li> <li>Click <strong>New</strong>.</li> <li>Enter the integrator user name and password created in VSA. <ul><li> <strong>Server Address</strong>: Enter FQDN or the IP address of your VSA.</li> <li> <strong>Show Server Address</strong>:<strong> </strong>Your selection determines whether the VSA server details will be shown on tickets under Affected Assets > RMM Server. </li> </ul></li> <li>When a ticket is created in BMS based on a ticket in VSA , those tickets need default values for required fields. Set those defaults in the Ticket Defaults section.</li> <li>Click <strong>Save</strong>.</li> <li>Click <strong>Test Connection</strong> to confirm the integration.</li> </ol><p><img src="https://us.v-cdn.net/6032361/uploads/migrated/TRCAOR50DR08/11or-rmm-bms-int-page-wout-asset-sync.png" alt="11OR_RMM_BMS_int_page_wout_asset_sync.png" width="512" height="300" class="embedImage-img importedEmbed-img"></img></p> <div> <strong>Tip!</strong> If you would like to use the <strong>Asset Mapping</strong> feature available in the RMM integration settings of BMS, refer to this <a rel="nofollow" href="/home/leaving?allowTrusted=1&target=https%3A%2F%2Fkaseya.vanillacommunities.com%2Fkb%2Farticles%2Faliases%2Fkaseya%2Fhc%2Fen-gb%2Farticles%2F360028217791-Asset-category-mapping-VSA-BMS-Sync">article</a> for more details.</div> <h3 id="h_01EFF9S9JCZ963X9WMA1MMGZDH" data-id="vsa-sync-configuration">VSA Sync Configuration</h3> <ol><li>Navigate to System > BMS Integration > Sync Configuration.</li> <li>Click <strong>Edit</strong>.</li> <li>Fill in the server details of your BMS.</li> <li>Choose <strong>Asset Push</strong> and configure the ticket processing rules as required.</li> <li>Click <strong>Save</strong>.</li> <li>Activate the <strong>Integration</strong> module.</li> <li>Click <strong>Test</strong> to confirm the integration.</li> </ol><p>The <strong>Sync Processing</strong> and <strong>Integration</strong> modules are now activated and will display a green checkmark to confirm the successful setup.</p> <p><img src="https://us.v-cdn.net/6032361/uploads/migrated/JNW58F2O1B52/2or-rmm-vsa-int.png" alt="2OR_RMM_VSA_int.png" width="512" height="300" class="embedImage-img importedEmbed-img"></img></p> <div> <strong>Tip!</strong> If you use an On-Prem VSA which is not accessible publicly, we advise you to add our BMS server IPs to your VSA server whitelist. Refer to this <a href="/home/leaving?allowTrusted=1&target=https%3A%2F%2Fkaseya.vanillacommunities.com%2Fkb%2Farticles%2Faliases%2Fkaseya%2Fhc%2Fen-gb%2Farticles%2F115001086732-BMS-Vorex-IP-Addresses" rel="noopener nofollow">article</a> for IPs.</div> <h3 id="h_01EFF9SQVD8Y335FB4H7MMQC65" data-id="live-connect">Live Connect</h3> <p>If you are using Live Connect and want to enable access between VSA and BMS, ensure that you have the latest version of the Live Connect app installed from VSA first.</p> <p><strong>Configure VSA</strong></p> <ol><li>Navigate to VSA > System > OAuth Clients.</li> <li>Click <strong>Register Client</strong>. <ol><li> <strong>Client Name</strong> - Enter your tenant name.</li> <li> <strong>Redirect URL</strong> - Enter your BMS server URL (<em><a rel="nofollow" href="/home/leaving?allowTrusted=1&target=https%3A%2F%2FBMS-domain-name%2FOAuth%2FKaseyaVSACallback.aspx">https://<bms-domain-name>/OAuth/KaseyaVSACallback.aspx</a>).</em> </li> <li> <strong>Email</strong> - Enter a valid email address. The client secret code will be sent to this address.</li> </ol></li> </ol><p><strong>Configure BMS</strong></p> <ol><li>Navigate to Admin > Service Desk > RMM Integration Settings.</li> <li>Click the<strong> Live Connect</strong> tab and then add the Client ID and Secret.</li> <li>Click <strong>Save</strong>. </li> <li>Navigate to My Profile > Integrations.</li> <li>Click <strong>Connect</strong>. If you are already logged in to VSA, this will auto-authenticate. If you are not logged in, you will need to provide the correct credentials. </li> </ol><div> <strong>Tip!</strong> BMS has an <strong>Auto Remediation</strong> feature which enables you to associate a VSA agent procedure with a BMS workflow, and automatically execute the procedure when the workflow is triggered.</div> <p> Related articles </p> <ul><li><a href="/home/leaving?allowTrusted=1&target=https%3A%2F%2Fkaseya.vanillacommunities.com%2Fkb%2Farticles%2Faliases%2Fkaseya%2Fhc%2Fen-gb%2Farticles%2F360013491218-Accounts-Synchronization-RMM-Integration" rel="noopener nofollow">Account sync with RMM and PSA</a></li> <li><a href="/home/leaving?allowTrusted=1&target=https%3A%2F%2Fkaseya.vanillacommunities.com%2Fkb%2Farticles%2Faliases%2Fkaseya%2Fhc%2Fen-gb%2Farticles%2F360015522178-Working-with-Live-connect-PSA-RMM" rel="noopener nofollow">Using Live connect in PSA</a></li> <li><a href="/home/leaving?allowTrusted=1&target=https%3A%2F%2Fkaseya.vanillacommunities.com%2Fkb%2Farticles%2Faliases%2Fkaseya%2Fhc%2Fen-gb%2Farticles%2F360011893978-Enabling-Periodic-Asset-Sync-with-BMS-VSA" rel="noopener nofollow">Asset sync with PSA | VSA</a></li> </ul> </article> </main>
