Jobs - Recent & Recent System Jobs tabs (8.0) - Connect IT Community | Kaseya

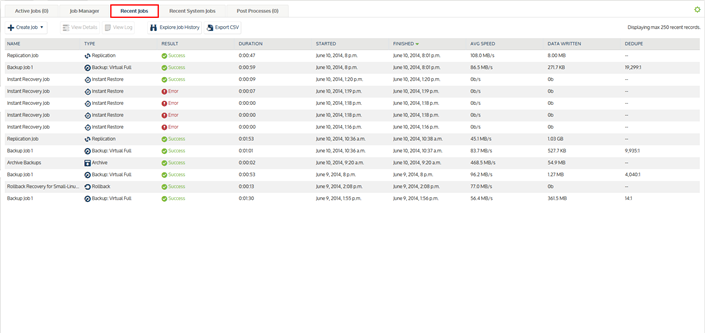

<main> <article class="userContent"> <h2 data-id="summary"><strong>SUMMARY</strong></h2> <p>Jobs - Recent & Recent System Jobs tabs (8.0)</p> <h2 data-id="issue"><strong>ISSUE</strong></h2> <p></p> <h1 data-id="recent-jobs">Recent Jobs</h1> <p> The Recent Jobs tab includes a list of recently completed jobs results.</p> <p><strong>Figure - Recent Jobs tab</strong></p> <p><img alt="User-added image" height="236" src="https://us.v-cdn.net/6032361/uploads/migrated/FP9WLS0KTKVS/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mk9w." width="500" class="embedImage-img importedEmbed-img"></img></p> <p>The Recent Jobs table consists of the following columns:</p> <ul><li> <strong>Name</strong> - Name of the job.</li> <li> <strong>Type</strong> - Type of backup job.</li> <li> <strong>Result</strong> - Result of the job run. Result messages can include: <ul><li>Success (<img alt="User-added image" src="https://us.v-cdn.net/6032361/uploads/migrated/CGMA1ZP5A21R/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mka1." class="embedImage-img importedEmbed-img"></img>)</li> <li>Error (<img alt="User-added image" src="https://us.v-cdn.net/6032361/uploads/migrated/JNF79JECFJFD/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkab." class="embedImage-img importedEmbed-img"></img>)</li> <li>Warning (<img alt="User-added image" src="https://us.v-cdn.net/6032361/uploads/migrated/JBY6HNN6R5FX/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkag." class="embedImage-img importedEmbed-img"></img>)</li> <li>Cancelled (<img alt="User-added image" src="https://us.v-cdn.net/6032361/uploads/migrated/XVCWZ0CE2JR9/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkal." class="embedImage-img importedEmbed-img"></img>)</li> </ul></li> <li> <strong>Duration</strong> - Time the job took to complete.</li> <li> <strong>Started</strong> - When the job began.</li> <li> <strong>Finished</strong> - When the job completed.</li> <li> <strong>Avg Speed</strong> - Average speed of the job in MB/s.</li> <li> <strong>Data Written</strong> - Total data written for the job.</li> <li> <strong>Dedupe</strong> - Backup jobs deduplication ratio (Total virtual disk size / size of data written).</li> </ul><p> </p> <h1 data-id="recent-system-jobs">Recent System Jobs</h1> <p>The Recent System Jobs tab is similar to the Recent Jobs tab, but only includes jobs of the Type; <strong>System Job</strong>.</p> <p><strong>Figure - Recent System Jobs tab</strong></p> <p><img alt="User-added image" height="236" src="https://us.v-cdn.net/6032361/uploads/migrated/8DXOMTBZXHVP/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkaq." width="500" class="embedImage-img importedEmbed-img"></img></p> <p>The Recent System Jobs table consists of the same columns as <strong>Recent Jobs</strong> with the exception of the <strong>Data Written</strong> and <strong>Dedupe</strong> columns.</p> <h2 data-id="job-explorer">Job Explorer</h2> <p>The Job Explorer window is opened by clicking <img alt="User-added image" src="https://us.v-cdn.net/6032361/uploads/migrated/ZCPVAGFJEJ9Y/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkav." class="embedImage-img importedEmbed-img"></img> from either the Recent Jobs tab or the Recent System Jobs tab.</p> <p><strong>Figure - Explore Job History window</strong></p> <p><img alt="User-added image" height="210" src="https://us.v-cdn.net/6032361/uploads/migrated/KBRR222L8ZIS/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkaa." width="500" class="embedImage-img importedEmbed-img"></img></p> <h3 data-id="viewing-details-job-explorer"><strong>Viewing Details - Job Explorer</strong></h3> <p>You can view the details for each backup by clicking on a specific job and then by clicking <img alt="User-added image" src="https://us.v-cdn.net/6032361/uploads/migrated/E40AAEOP0COF/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkaf." class="embedImage-img importedEmbed-img"></img> . The details will appear at the bottom and will be sorted by object. See example below:</p> <p><strong>Figure - View Details</strong></p> <p><img alt="User-added image" height="45" src="https://us.v-cdn.net/6032361/uploads/migrated/4FPW29YCXIF4/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkak." width="500" class="embedImage-img importedEmbed-img"></img></p> <p>When done reviewing the details, click <img alt="User-added image" src="https://us.v-cdn.net/6032361/uploads/migrated/5GVLEYAEIBG6/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkau." class="embedImage-img importedEmbed-img"></img> to exit.</p> <h3 data-id="view-log"><strong>View Log</strong></h3> <p>You can view a log for each backup job by clicking <img alt="User-added image" src="https://us.v-cdn.net/6032361/uploads/migrated/RT5XU5PG0NWH/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkaz." class="embedImage-img importedEmbed-img"></img>. You can sort the information by clicking on the heading of each column. The log window appears as follows:</p> <p><strong>Figure - View Log window</strong></p> <p><img alt="User-added image" height="348" src="https://us.v-cdn.net/6032361/uploads/migrated/IIGBHWHFTOMI/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkb4." width="500" class="embedImage-img importedEmbed-img"></img></p> <p>The log will display information in the following columns:</p> <ul><li> <strong>Time </strong> - Date and time for log message.</li> <li> <strong>Level</strong> - Log message level (type of log message). There are currently three valid levels; <strong>Info</strong>, <strong>Warning</strong>, and <strong>Error</strong>.</li> <li> <strong>Engine</strong> - Engine Appliance from which the log message originated.</li> <li> <strong>Management</strong> - Management Appliance from which the log message originated.</li> <li> <strong>Message</strong> - Log information detailed message.</li> </ul><p>You can export the job history or the log to an Excel file by clicking <img alt="User-added image" src="https://us.v-cdn.net/6032361/uploads/migrated/8ZDH728PC1T1/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkb9." class="embedImage-img importedEmbed-img"></img> at the top of the page.</p> <h2 data-id="viewing-details">Viewing Details</h2> <p>When you click<img alt="view_details_icon.png" src="https://phdtechsupport.zendesk.com/attachments/token/cots6tf4z8abylv/?name=view_details_icon.png" class="embedImage-img importedEmbed-img"></img> at the top of each tab, another table will appear at the bottom of the tab. The table will be sorted by object. Below is the <strong>View Details</strong> table for the <strong>Recent Jobs</strong> tab.</p> <p><strong>Figure - View Details Recent Jobs</strong></p> <p><img alt="User-added image" height="57" src="https://us.v-cdn.net/6032361/uploads/migrated/6RG8T6G8NMU9/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkbe." width="500" class="embedImage-img importedEmbed-img"></img></p> <p><strong> </strong></p> <p>The <strong>View Details</strong> table displays:</p> <ul><li> <strong>Object</strong> - Name of the VM or disk.</li> <li> <strong>Result</strong> - Status for object in the job. Result messages can include: <ul><li>Success (<img alt="User-added image" src="https://us.v-cdn.net/6032361/uploads/migrated/DRXGEFD4I4Y0/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkbj." class="embedImage-img importedEmbed-img"></img>)</li> <li>Error (<img alt="User-added image" src="https://us.v-cdn.net/6032361/uploads/migrated/JDAHA1Z9F9Q9/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkbo." class="embedImage-img importedEmbed-img"></img>)</li> <li>Warning (<img alt="User-added image" src="https://us.v-cdn.net/6032361/uploads/migrated/SCK1Z5ACDDZM/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkby." class="embedImage-img importedEmbed-img"></img>)</li> <li>Cancelled (<img alt="User-added image" src="https://us.v-cdn.net/6032361/uploads/migrated/1BA21DZR65V3/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkbd." class="embedImage-img importedEmbed-img"></img>)</li> </ul></li> </ul><ul><li> <strong>Start</strong> - Date and time the process for the object started.</li> <li> <strong>End</strong> - Date and time the process for the object completed.</li> <li> <strong>Speed</strong> - Speed of the process for the individual object in MB/s.</li> <li> <strong>Data Written</strong> - Data written for the object.</li> <li> <strong>Dedupe</strong> - Deduplication ratio for VMs and disks (Total virtual disk size / size of data written).</li> </ul><p>The <strong>View Details</strong> table for the <strong>Recent Systems Jobs</strong> tab appears similar to the <strong>View Details</strong> table for <strong>Recent Jobs.</strong> However, it excludes the <strong>Data Written</strong> and <strong>Dedupe</strong> columns.</p> <h2 data-id="filtering-job-results">Filtering Job Results</h2> <p>In order to filter the results to certain jobs, click <img alt="User-added image" src="https://us.v-cdn.net/6032361/uploads/migrated/A3J5W4T172HT/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkbi." class="embedImage-img importedEmbed-img"></img>. A dialog window will open with the options to sort by <strong>Job name</strong>, <strong>Job type</strong>, <strong>Job Result</strong>, <strong>Job start/finish date</strong>, and <strong>Job inventory.</strong></p> <p><strong>Figure - Filter Jobs dialog window</strong></p> <p><img alt="User-added image" src="https://us.v-cdn.net/6032361/uploads/migrated/NA9JU9SU0FCD/eid-ka01w000000tcba-feoid-00n40000002yvfa-refid-0em40000000mkbn." class="embedImage-img importedEmbed-img"></img></p> <p>When finished choosing your options, click <strong>Filt</strong><strong>er</strong> to continue.</p> </article> </main>
