8002-8012 appliance disk replacement process - Connect IT Community | Kaseya

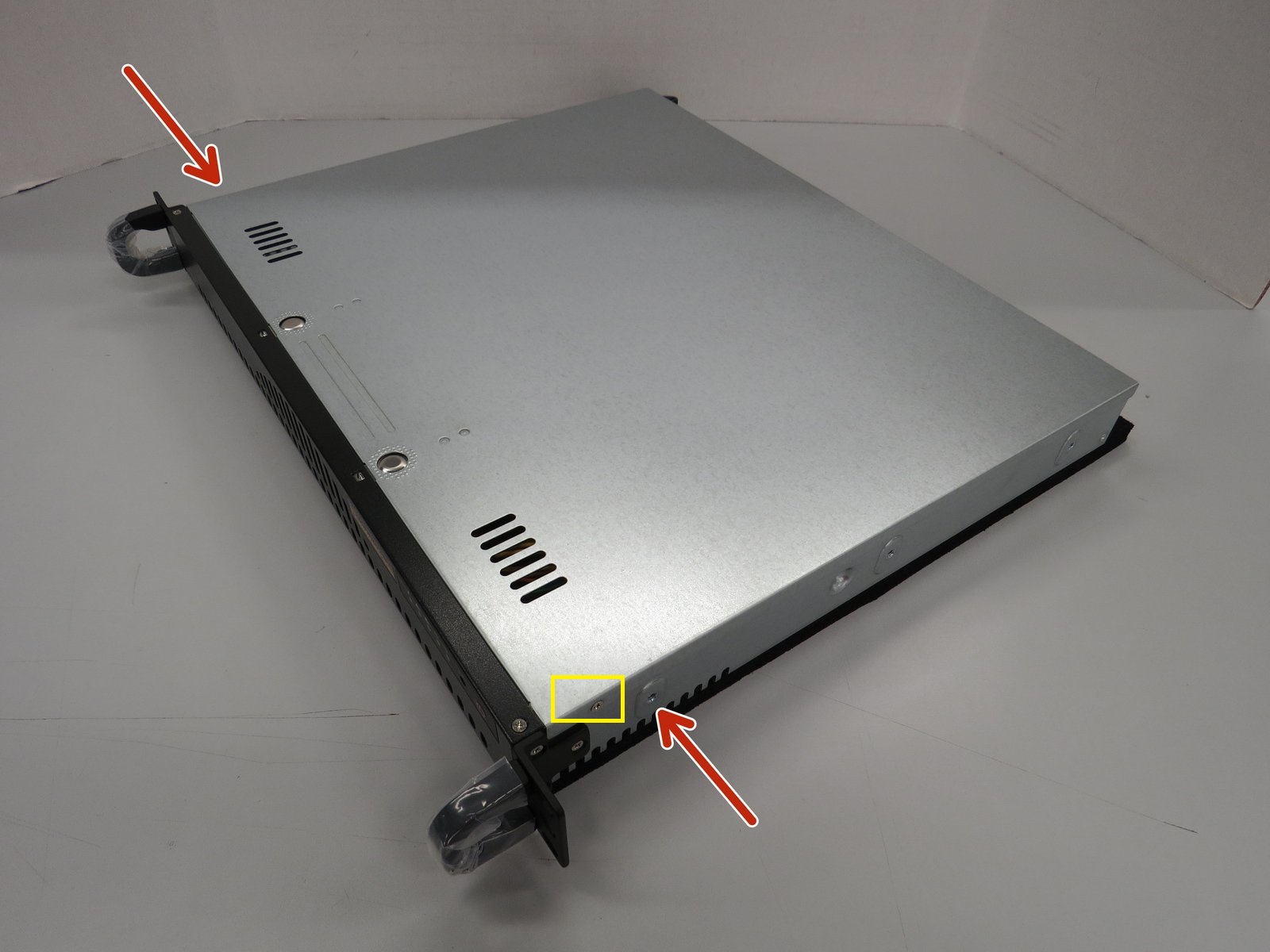

<main> <article class="userContent"> <p> </p> <p>Parts required: Replacement drive</p> <p>Tools required: Standard Phillips screwdriver</p> <p>Access required: Will need access to top cover and bottom of appliance and possible side if retaining screws are still in place</p> <p> </p> <h3 data-id="step-1-shutdown-appliance-via-the-ui">Step 1: Shutdown appliance via the UI</h3> <p><a href="https://kaseya.vanillacommunities.com/kb/articles/aliases/unitrends/hc/en-us/articles/360013258258--Animated-Tutorial-How-to-Shutdown-the-Appliance?source=search" rel="noopener noreferrer nofollow">[Animated Tutorial] How to Shutdown the Appliance</a></p> <p> </p> <h3 data-id="step-2-remove-cover">Step 2: Remove cover:</h3> <ul><li>Remove power from appliance</li> <li>Unrack or move to allow for access as needed</li> <li>Remove the two lid screws. (may have already been removed)</li> <li> <p>Remove the lid from the chassis via pressing middle buttons and sliding back top cover</p> </li> </ul><p><img src="https://us.v-cdn.net/6032361/uploads/migrated/SUFNCDNBF17Q/top-cover-removal.jpeg" alt="Top_Cover_removal.jpeg" class="embedImage-img importedEmbed-img"></img></p> <p> </p> <h3 data-id="step-3-remove-then-replace-disk">Step 3: Remove then replace disk</h3> <ul><li>Match old disk to original S/N provided previously</li> <li>Drive is secured to the chassis by 4 screws each from the underside of the chassis</li> <li>Once screws are removed drive should be able to disconnect and pull out vertically </li> <li>Secure and connect new disk </li> </ul><p><img src="https://us.v-cdn.net/6032361/uploads/migrated/JZSAI8K1D9MR/bxaddolwsowvloby.jpeg" alt="bxADDOLwSOwvlOBY.jpeg" class="embedImage-img importedEmbed-img"></img></p> <p><img src="https://us.v-cdn.net/6032361/uploads/migrated/U1P6SVG3398K/sevjmxg3zarvhdu6.jpeg" alt="sEVjmxg3ZArVHDu6.jpeg" class="embedImage-img importedEmbed-img"></img></p> <p> </p> <h3 data-id="step-4-close-appliance-and-power-on">Step 4: Close appliance and power on</h3> <ul><li>reverse steps 3 & 2 to close appliance lid and secure back to previous rack/mount position </li> <li>reconnect power and press power button on front to power on</li> </ul><h3 data-id="step-5-rebuild-disk-into-raid">Step 5: Rebuild disk into raid</h3> <ul><li>Notify support that the drive is replaced for support to start rebuild of disk this model line currently does not auto-rebuild the disk on detection.</li> </ul><p> </p> <p> </p> </article> </main>
