VCD stops trying to replicate when the queue scheme is set to anything other than manual.
When replicating, the following error condition is encountered:
Failed: Unable to process initial meta info on target, out of order backup sequence detected. This instance is "paused" and may require manual intervention to resume.
Query the database on the source to check for out of order backups. If the status is 128 then proceed with this KB.
psql bpdb -U postgres -c "SELECT * from bp.replication_queue WHERE status = 128"
backup_no | vault | position | status | rep_start
35779 | den-12xxx0 | 17579 | 128 | 1531051778
Use Google Chrome or Mozilla Firefox and log into the Target appliance. Navigate to:
CONFIGURE (page) > Appliances (tab) and select the name of the Target. Click the Edit button.

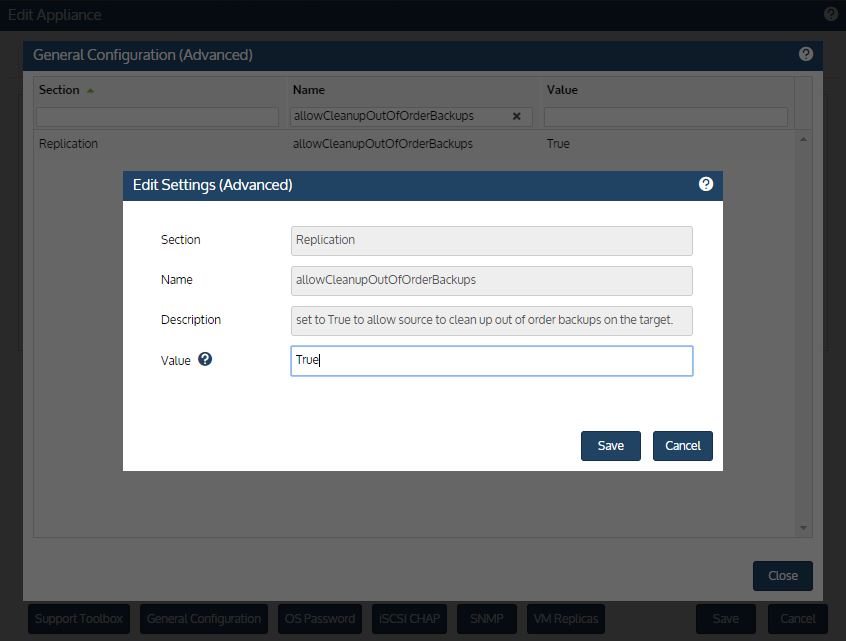

- Go to the Advanced (tab) and click on the General Configuration button at the bottom.
- Copy the word allowCleanupOutOfOrderBackups into the Name column.
- Click on the line item for the Section Replication. Set the Value to True, Click Save, Close, Save.
- Then, from the source system, execute the following command:
/usr/bp/bin/vcd util fix-paused-instance <target> <backup_no>
where <target> is the hostname of the target system, and <backup_no> should be replaced by the number of the backup that is failing to replicate.
- Once the issue has been resolved, restore the allowCleanupOutOfOrderBackups (step 3 and 4 above value back to False and save the settings.
This occurs when attempting to replicate a backup that is older than backups on the target system. Sometimes this condition may also be present after removing bad hashes and the associated backups.
